Lub tsev pheeb suab 5 × 6m yog feem ntau siv rau hauv kev tsim kho nrog cov neeg ua haujlwm siab lossis composite functional xav tau. Hauv kev ua haujlwm engineering, qhov loj me no feem ntau siv rau ntau tus neeg chaw nyob, nyob rau ntawm qhov chaw hais kom ua, cov khoom sorting cheeb tsam los yog ib ntus chaw ua hauj lwm, es tsis yog rau qhov chaw nyob ib leeg.
Hauv kev npaj mus pw hav zoov, tus qauv tsev pheebsuab no feem ntau ua haujlwm rau pej xeem, ua ntau yam haujlwm hauv tsev los txo cov tsev pheeb suab ntaub thiab txhim kho tag nrho qhov chaw siv. efficiency.
Txhawm rau ua kom tau raws li qhov yuav tsum tau muaj kev ruaj ntseg rau kev siv hauv qhov chaw loj, cov ntsuas kev ua tau zoo hauv qab no tau qhia meej meej rau 5 × 6m Kev Tsim Tsev Tsev Pheebsuab thaum lub sijhawm tsim:
· Cua Resistance: ≥ Qib 8
· Kev Ntsuas Dej: ≥ 3000mm
· Kev Ua Haujlwm Kub Kub: -30 ℃ to + 50 ℃
· Nplaim-Retardant Rating: Lub rwb thaiv tsev txheej raws li Class B1 tus qauv
Cov ntsuas saum toj no ua kom lub tsev pheeb suab ntaub tuaj yeem siv tsis tu ncua hauv kev tsim kho ib puag ncig nrog nag, daus, muaj zog cua thiab loj nruab hnub-hmo kub sib txawv.

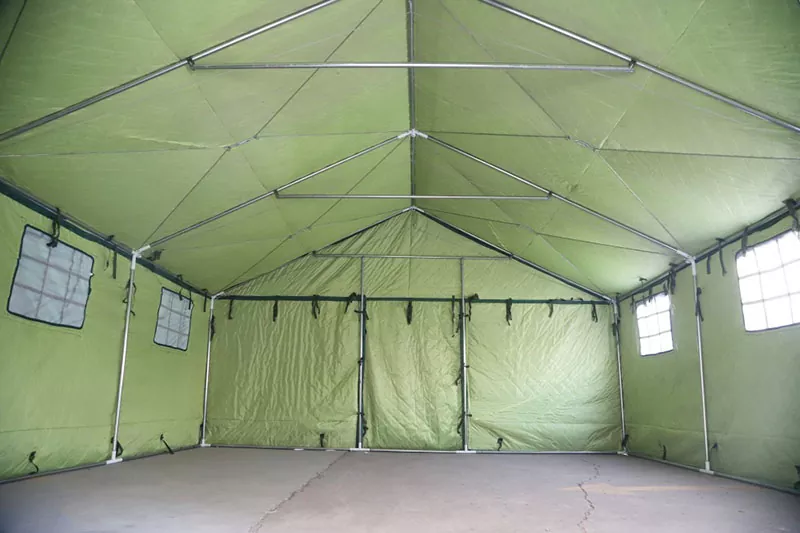

Cov qauv tsev pheeb suab no tau txais ntau qhov kev ntxhov siab-cov kabmob steel qauv ncej kom txo tau qhov kev pheej hmoo ntawm deformation los ntawm nce span.
· Main Steel Pipes: φ32 × 1.2mm galvanized steel kav
· Connection Method: Painted tee thiab plaub-txoj kev connectors
· Cov Qauv hauv qab: Cov kab teeb hauv av los txhim kho kev ruaj ntseg tag nrho
Los ntawm qhov kev faib tawm ntawm qhov kev sib txuas ntawm longitudinal thiab transverse kev txhawb nqa, lub tsev pheeb suab tswj kev sib npaug thaum expanding sab hauv cheeb tsam, ua rau nws haum rau lub sij hawm ntev taag los yog semi-taag siv.

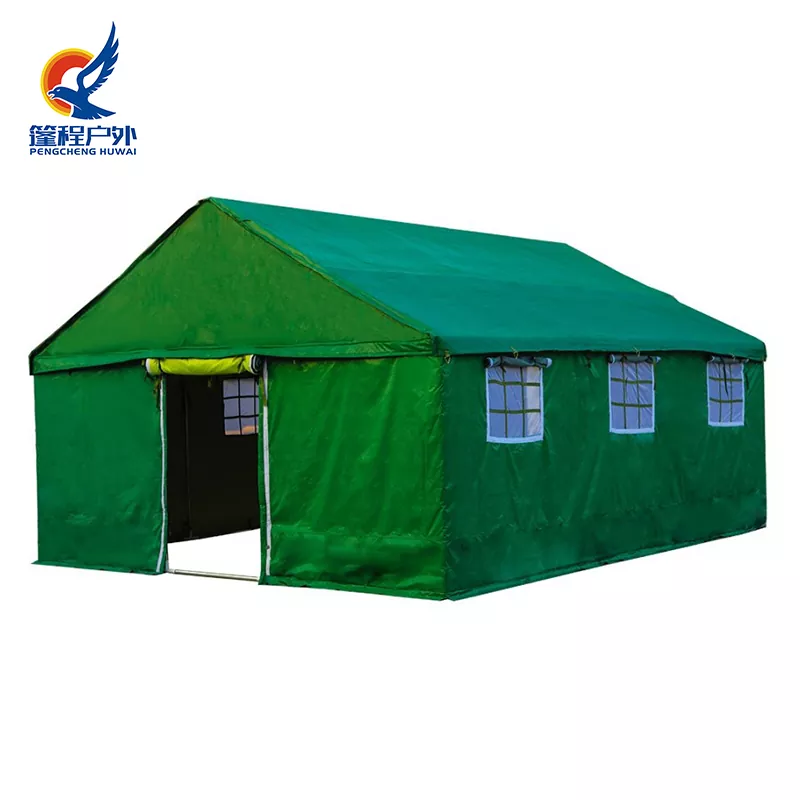

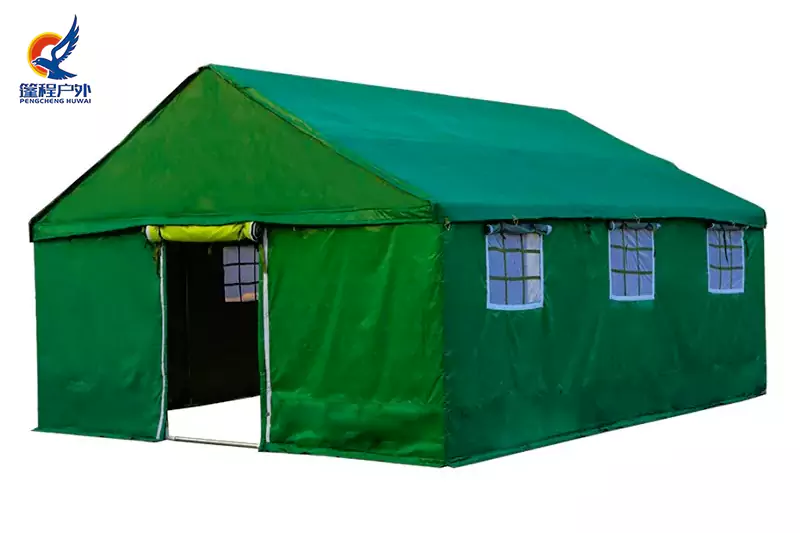

Tus qauv teeb tsa ntawm 5 × 6m Kev Tsim Tsev Tsev Pheebsuab suav nrog ob lub qhov rooj thiab rau lub qhov rais, yooj yim rau cov neeg ua haujlwm nkag, teeb pom kev zoo thiab huab cua ncig. Lub qhov rais txais ib daim phiaj-patterned qauv nrog kev ywj pheej curtains, enabling zoned tswj raws li kev xav tau.
Hauv kev siv tswv yim, cov txheej txheem layout rau cov qauv tsev pheeb suab no suav nrog:
· Centralized multi-neeg nyob (zoned txaj)
· Cov rooj sib tham hauv tsev lossis chaw xa khoom
· Centralized cia cov cuab yeej thiab cov ntaub ntawv
Qhov chaw loj endows lub tsev pheeb suab nrog ntau dua kev siv yooj.
|
Cov ncauj lus kom ntxaws parameter piav qhia ntawm lub tsev pheebsuab siv tsev pheebsuab |
||||
|
Loj |
Npuag |
Bracket |
Configure |
Bracket hnyav |
|
3 * 2 (1 chav) |
1 * 2 tuab roj hmab yas sab saum toj 420 tapered oxford ntaub 400 floral silk paj rwb Zoo zoo ntsuab oxford hauv ob sab phlu |
Lub bracket yeeb nkab isφ32 * 1.2mm tuab galvanized steel yeeb nkab Lub tee thiab plaub-txoj kev yog φ32 * 1.2mn tuab pleev xim rau puag ncig Nrog Diliang |
Ib lub qhov rooj thiab ob lub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
85kg ua |
|
3 * 4 (2 chav) |
Ib lub qhov rooj thiab plaub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
123kg ua |
||
|
5 * 4 (2 chav) |
Ob lub qhov rooj thiab plaub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
131kg ua |
||
|
5 * 6 (3 chav) |
Ob lub qhov rooj thiab rau lub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
196kg ua |
||
|
5 * 8 (4 chav) |
Ob lub qhov rooj thiab yim qhov rais 2 daim ntaub + pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 41kg |
||
|
5 * 10 (5 chav) |
Ob lub qhov rooj thiab kaum qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 87kg |
||
|
Kev ua haujlwm, cov ntaub ntawv thiab cov khoom siv ntawm cov khoom no tuaj yeem ua raws li cov neeg siv khoom xav tau. |
||||
Lub tsev pheebsuab tarpaulin txais cov txheej txheem ntau txheej, ntsuas huab cua tiv thaiv thiab kev nplij siab.
|
Ib feem |
Khoom piav qhia |
|
Rooj |
Rubber-yas composite waterproof ru tsev ntaub |
|
Ntaub ntaub |
420 coated Oxford daim ntaub |
|
Thermal rwb thaiv tsev txheej |
Nplaim-retardant polyester koob-punched paj rwb |
|
Sab hauv |
Oxford daim ntaub sab hauv hauv ob sab phlu |
Cov khoom siv no muab kev ua haujlwm ruaj khov hauv cov av noo, qis-kub lossis muaj zog tshav ntuj, txo qhov kev xav tau ntawm kev hloov pauv thiab tu.
Rau cov haujlwm engineering nrog kev pabcuam ntev, 5 × 6m Kev Tsim Tsev Tsev Pheebsuab tseem ceeb rau kev saib xyuas yooj yim hauv nws tsim:
· Tarpaulin thiab cov khoom vaj tse tuaj yeem hloov tau ntawm nws tus kheej
· galvanized steel kav txo qhov kev pheej hmoo ntawm corrosion
· Modular accessories pab txhawb kev txij nkawm ntawm qhov chaw
Nyob rau hauv qhov chaw nyob ruaj ruaj, kev nyab xeeb ntawm kev siv tuaj yeem txhim kho ntxiv los ntawm kev ntxiv cov anchors hauv av, counterweights lossis foundation fixation txoj kev.
Cov khoom lag luam yog tsim nyob rau hauv peb cov chaw tsim khoom hauv Suav teb, nruj me ntsis ua raws li ISO9001 zoo tswj qhov system. Cov txheej txheem ntau lawm npog cov kev sib txuas tseem ceeb xws li steel yeeb nkab ua, tarpaulin compounding thiab Kev tshuaj xyuas cov khoom tiav, nrog cov qauv tsim thiab cov dej tsis zoo ua tiav ua ntej xa khoom.
· Cov khoom siv ntau
· Customization ntawm qhov ntev, configurations thiab functions
· Kev txhawb nqa thiab OEM ntau lawm
Lub 5 × 6m Kev Tsim Tsev Tsev Pheebsuab yog tsim nyog rau tag nrho kev yuav khoom hauv nruab nrab-rau-loj engineering tej yaam num, txhawb kev sib koom ua ke rau hauv kev npaj ua ke thiab kev siv lub sijhawm ntev ntawm kev tsim kho cov chaw pw hav zoov.
