Pengcheng Sab nraum zoov siv tsev pheeb suab (tseem hu ua cov tsev pheeb suab paj nruag thiab cov tsev pheeb suab tsev pheeb suab) feem ntau suav nrog ob ntu: Pengcheng Siv Tsev Tsev thiab Sanyou Tsev Tsev. Tsim los rau cov xwm txheej zoo xws li kev tsim kho engineering, kev ua haujlwm hauv teb thiab kev txhawb nqa thaum muaj xwm txheej ceev, cov tsev pheeb suab no ua tau raws li cov kev xav tau ntawm cov kev pabcuam luv-rau-nruab nrab-thiab-ntev-ntev thiab kev txhawb nqa ntawm qhov chaw.
Ua nyob rau hauv peb cov chaw tsim khoom hauv Suav teb, cov khoom lag luam npog tag nrho cov txheej txheem tsim khoom xws li steel qauv ua, tarpaulin compounding thiab kev tshuaj xyuas cov khoom tiav. Los ntawm kev tsim cov qauv ntawm lub zog, thermal rwb thaiv tsev kev ua tau zoo thiab kev ntsuas dej tsis zoo, cov tsev pheeb suab tswj kev siv tau ruaj khov nyob rau hauv ib puag ncig nyuaj, ua rau lawv haum rau alpine, kub-kub, nag thiab cua.
Pengcheng Sab nraum zoov siv tsev pheeb suab siv lub zog siab galvanized steel ncej qauv, ua ke nrog ntau txheej txheej tarpaulin thiab thermal rwb thaiv tsev cov ntaub ntawv, ntsuas cov qauv kev ruaj ntseg thiab kev nyob zoo. Lub zuag qhia tag nrho yog tsim los ntawm kev sib dhos modular, yooj yim rau kev thauj mus los, kev txhim kho sai thiab kev kho tom qab.
Tag nrho cov specifications muaj nyob rau tej qhov chaw muab khoom. Meanwhile, customization ntawm qhov ntev, ntaub thickness, tus naj npawb ntawm cov qhov rooj thiab qhov rais, thermal rwb thaiv tsev qib thiab haumxeeb configurations yuav ua tau raws li qhov project yuav tsum tau.

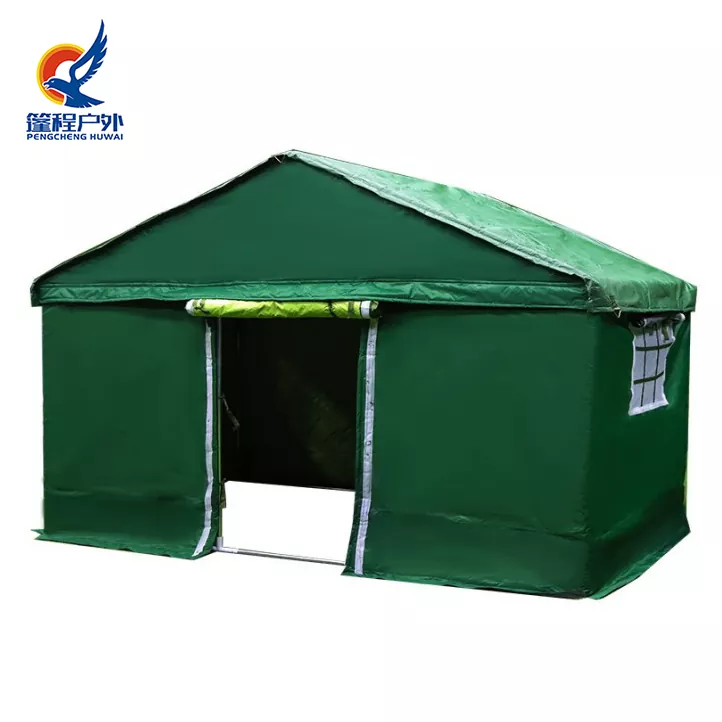

Ntawm lawv, 3 × 2m Kev Tsim Tsev Tsev Pheebsuab feem ntau yog siv los ua qhov chaw ua haujlwm me me hauv chav ua haujlwm, chaw ua haujlwm ib ntus lossis chav nyob ib leeg / ob chav nyob, thiab yog ib qho ntawm cov qauv siv feem ntau hauv cov chaw engineering.
|
Cov ncauj lus kom ntxaws parameter piav qhia ntawm lub tsev pheebsuab siv tsev pheebsuab |
||||
|
Loj |
Npuag |
Bracket |
Configure |
Bracket hnyav |
|
3 * 2 (1 chav) |
1 * 2 tuab roj hmab yas sab saum toj 420 tapered oxford ntaub 400 floral silk paj rwb Zoo zoo ntsuab oxford hauv ob sab phlu |
Lub bracket yeeb nkab isφ32 * 1.2mm tuab galvanized steel yeeb nkab Lub tee thiab plaub-txoj kev yog φ32 * 1.2mn tuab pleev xim rau puag ncig Nrog Diliang |
Ib lub qhov rooj thiab ob lub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
85kg ua |
|
3 * 4 (2 chav) |
Ib lub qhov rooj thiab plaub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
123kg ua |
||
|
5 * 4 (2 chav) |
Ob lub qhov rooj thiab plaub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
131kg ua |
||
|
5 * 6 (3 chav) |
Ob lub qhov rooj thiab rau lub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
196kg ua |
||
|
5 * 8 (4 chav) |
Ob lub qhov rooj thiab yim qhov rais 2 daim ntaub + pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 41kg |
||
|
5 * 10 (5 chav) |
Ob lub qhov rooj thiab kaum qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 87kg |
||
|
Kev ua haujlwm, cov ntaub ntawv thiab cov khoom siv ntawm cov khoom no tuaj yeem ua raws li cov neeg siv khoom xav tau. |
||||
Cov qauv ruaj khov rau kev siv mus ntev
Lub tsev pheeb suab ntaub yog ua los ntawm Q235B carbon steel high-frequency welded kav nrog kub-dip galvanizing kev kho mob, zoo txhim kho corrosion kuj. Tag nrho cov qauv tuaj yeem tiv taus cua nrawm ntawm ≥ Qib 8, ua rau nws tsim nyog rau qhov chaw qhib kev tsim kho thiab thaj chaw ib puag ncig.Ua piv txwv 3 × 2m Kev Tsim Tsev Tsev Pheebsuab, nws cov qauv compact ua kom ruaj khov thaum txo qhov chaw hauv pem teb, yooj yim rau nruab nrab layout.
Waterproof ntsuam xyuas ≥ 3000mm, muaj peev xwm tiv taus dej nag tsis tu ncua
Ob txheej txheej qauv tsim nrog cov nplaim hluav taws-retardant thermal rwb thaiv tsev paj rwb
Kev khiav hauj lwm kub: -30 ℃ to + 50 ℃
Kev siv lub ntsaws-hauv thiab ntsia liaj qhov rooj-tso ua ke ua ke, ib lub tsev pheeb suab tuaj yeem tsim los ntawm 4 tus neeg hauv 30 feeb. Ob lub tarpaulin thiab thav duab yog cov qauv tsim, ua kom yooj yim hloov thiab txij nkawm nyob rau theem tom ntej.
Cov tsev pheeb suab ntaub tuaj yeem ua ke los ntawm kev nkag mus lossis kev sib txuas ua ke los tsim cov chaw nyob ib ntus, chaw ua haujlwm lossis chaw cia khoom, ua tau raws li qhov xav tau ntawm cov phiaj xwm sib txawv.
Pengcheng Sab nraum zoov siv tsev pheeb suab yog tsim rau cov xwm txheej hauv qab no:
Cov chaw tsim kho (chaw nyob thiab chav ua haujlwm rau cov neeg ua haujlwm tsim kho)
Kev tshawb nrhiav teb thiab kev tshawb fawb geological
Kev cawm thaum muaj xwm txheej ceev thiab rov qab muaj kev puas tsuaj
Cov chaw pw ib ntus rau kev tswj dej nyab thiab kev cawm thaum muaj xwm txheej ceev
Kev cob qhia tub rog thiab kev txhawb nqa
Hauv cov haujlwm ua haujlwm, 3 × 2m Kev Tsim Tsev Tsev Pheebsuab feem ntau siv nws tus kheej los ua ib lub tsev pheeb suab ntaub, thiab tseem tuaj yeem ua tus qauv yooj yim hauv cov tsev pheeb suab loj.
Txhua lub tsev pheeb suab yog tsim los ntawm cov chaw tsim khoom hauv Suav teb, nruj me ntsis ua raws li ISO9001 kev tswj xyuas zoo:
Steel Structure: CNC yeeb nkab dabtsi yog khoov + kub-dip galvanizing tshuab
Tarpaulin: High-density Oxford daim ntaub nrog ob-sided PVC txheej
Thermal rwb thaiv tsev txheej: nplaim-retardant polyester koob-punched paj rwb, ntsib Class B1 hluav taws-retardant txheem
Cov khoom tiav lawm yuav tsum tau xeem dhau cua thiab los nag, kev kuaj cov kabmob ntawm cov kabmob thiab kev tshuaj xyuas los ua ke kom ntseeg tau tias kev ua haujlwm ruaj khov ntawm cov khoom qub qub hauv qhov chaw ua haujlwm engineering.
Txhawb nqa ntau ntawm cov khoom hauv Tshuag
Txhawb OEM / ODM customization
Adjustable qhov ntev, cov qauv, cov ntaub ntawv thiab configuration raws li tej yaam num
Muab kev txhawb nqa mus sij hawm ntev thiab kev pab cuam tom qab muag
Raws li ib tus neeg muag khoom suav nrog kev paub dhau los hauv kev tsim tsev pheeb suab, peb tsom ntau dua rau kev ruaj ntseg thiab kev ruaj ntseg ntawm cov khoom hauv cov ntawv thov tiag tiag, kom ntseeg tau tias txhua lub tsev pheeb suab ua tau raws li qhov xav tau tiag tiag ntawm cov haujlwm engineering.
