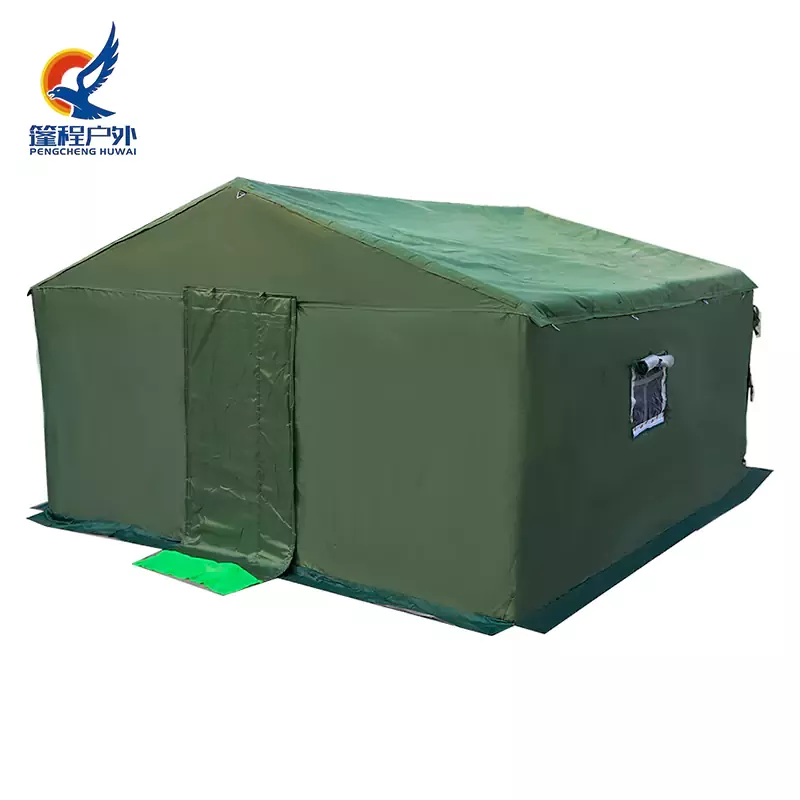

Lub 2.5 × 3.5m Kev Tsim Tsev Tsev Pheebsuab yog lub tsev me me hauv kev tsim kho tsev pheeb suab, feem ntau yog tsim los ua kom tau raws li qhov kev thov. ntawm qhov chaw xav tau ntawm cov tib neeg lossis pab pawg me ntawm cov neeg ua haujlwm. Hauv cov haujlwm engineering, cov qauv no feem ntau siv los ua lub luag haujlwm chav tsev, chaw ua haujlwm ib ntus, khoom siv saib xyuas tom tsev lossis chav nyob ywj pheej, zoo tagnrho rau kev tsim kho ib puag ncig uas muaj qhov txwv tsis pub dhau los yog xav tau kev hloov chaw tsis tu ncua.
Piv nrog rau cov tsev pheeb suab loj loj, cov qauv no muaj qhov pom tseeb zoo hauv kev ua haujlwm hauv pem teb, kev thauj mus los thiab erection efficiency.
Ib qho kev thov scenarios ntawm lub tsev pheebsuab qauv no muaj xws li:
· Purban road and municipal maintenance projects
· Cov chaw tsim kho me me lossis thaj chaw ua haujlwm tsis raug cai
· Cov chaw nyob ib ntus rau kev tshawb nrhiav teb
· Lub luag haujlwm thiab hloov chaw ua haujlwm thaum tswj dej nyab thiab ua haujlwm cawm thaum muaj xwm txheej ceev
Nyob rau hauv ntau lub ntsiab lus faib kev tsim kho, 2.5 × 3.5m Kev Tsim Tsev Tsev Pheebsuab tuaj yeem siv sai sai kom tau raws li qhov yooj yim. kev xav tau.
|
Cov ncauj lus kom ntxaws parameter piav qhia ntawm lub tsev pheebsuab siv tsev pheebsuab |
||||
|
Loj |
Npuag |
Bracket |
Configure |
Bracket hnyav |
|
3 * 2 (1 chav) |
1 * 2 tuab roj hmab yas sab saum toj 420 tapered oxford ntaub 400 floral silk paj rwb Zoo zoo ntsuab oxford hauv ob sab phlu |
Lub bracket yeeb nkab isφ32 * 1.2mm tuab galvanized steel yeeb nkab Lub tee thiab plaub-txoj kev yog φ32 * 1.2mn tuab pleev xim rau puag ncig Nrog Diliang |
Ib lub qhov rooj thiab ob lub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
85kg ua |
|
3 * 4 (2 chav) |
Ib lub qhov rooj thiab plaub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
123kg ua |
||
|
5 * 4 (2 chav) |
Ob lub qhov rooj thiab plaub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
131kg ua |
||
|
5 * 6 (3 chav) |
Ob lub qhov rooj thiab rau lub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
196kg ua |
||
|
5 * 8 (4 chav) |
Ob lub qhov rooj thiab yim qhov rais 2 daim ntaub + pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 41kg |
||
|
5 * 10 (5 chav) |
Ob lub qhov rooj thiab kaum qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 87kg |
||
|
Kev ua haujlwm, cov ntaub ntawv thiab cov khoom siv ntawm cov khoom no tuaj yeem ua raws li cov neeg siv khoom xav tau. |
||||
Txawm hais tias nws qhov loj me me, tus qauv no tuav cov qauv siab hauv kev tsim qauv thiab xaiv cov khoom siv.
|
Yam khoom |
Configuration Description |
|
Txhawb Cov Qauv |
φ32 × 1.2mm galvanized steel kav |
|
Cov khoom sib txuas |
Painted steel tee thiab plaub-txoj kev txuas |
|
Cov ntaub pua tsev |
Rubber-yas composite waterproof ru tsev ntaub |
|
Cov ntaub ntawv enclosure |
420 coated Oxford daim ntaub |
|
Thermal rwb thaiv tsev txheej |
Nplaim-retardant polyester koob-punched paj rwb |
|
Sab hauv |
Oxford daim ntaub sab hauv hauv ob sab phlu |
Lub zuag qhia tag nrho yog ruaj khov, haum rau luv luv-rau-nruab nrab-lub sij hawm siv tas li.
Lub 2.5 × 3.5m Kev Tsim Tsev Tsev Pheebsuab txais tus qauv tsim qauv nrog cov khoom me me:
· tuaj yeem tsim los ntawm 2-3 tus neeg
· Lub sij hawm tsim tawm: kwv yees li 20-30 feeb
· Yuav tau sai sai disassembled thiab rov siv dua
Qhov no feature muab nws high turnover efficiency nyob rau hauv tej yaam num yuav tsum tau nquag tsiv chaw nyob los yog siv luv luv lub voj voog.
Cov qauv no tuav cov ntsuas kev ua tau zoo ib yam nrog cov tsev pheeb suab nruab nrab thiab loj:
· Cua Resistance: ≥ Qib 8
· Kev Ntsuas Dej: ≥ 3000mm
· Kev Ua Haujlwm Kub Kub: -30 ℃ to + 50 ℃
· Nplaim-Retardant Rating: Class B1 (thermal rwb thaiv tsev txheej)
Nyob rau hauv nws daim ntawv compact, nws tseem ua tau raws li qhov yooj yim kev nyab xeeb yuav tsum tau ntawm complex tsim ib puag ncig.
Lub 2.5 × 3.5m Kev Tsim Tsev Tsev Pheebsuab txhawb nqa ntau qhov chaw thiab tuaj yeem hloov kho raws li qhov xav tau, suav nrog kev hloov kho rau tus naj npawb ntawm cov qhov rooj thiab qhov rais, qib thermal rwb thaiv tsev thiab kev teeb tsa sab hauv.
Cov qauv no feem ntau yog siv los ua ke nrog cov tsev pheeb suab nruab nrab thiab loj loj raws li kev ywj pheej ua haujlwm ntxiv chav tsev nyob rau hauv kev tsim kho camps, ua kom yooj yim configuration ntawm tag nrho cov project.
