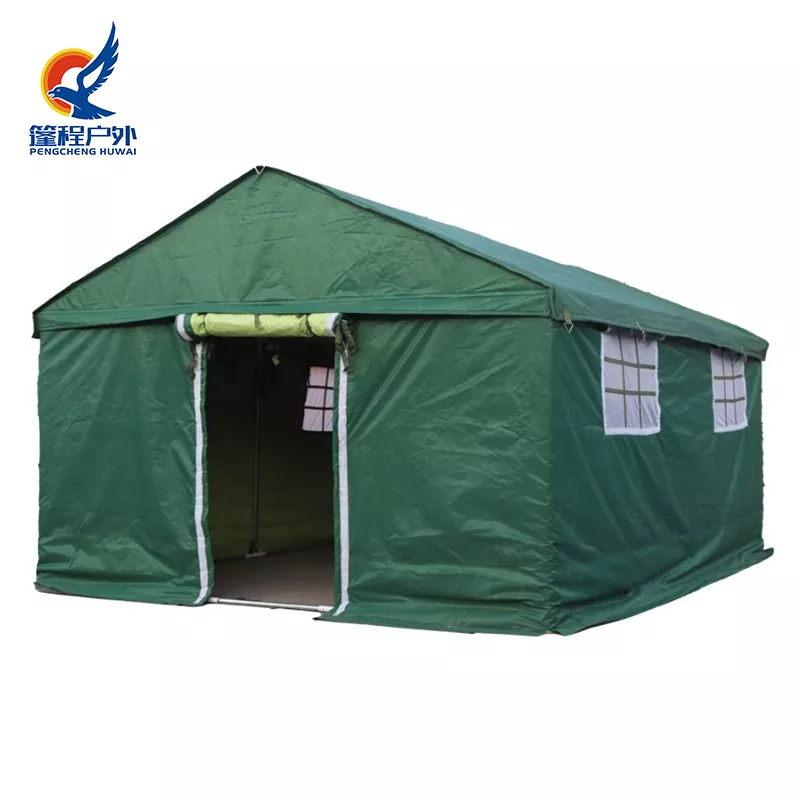

Lub Tsev Teev Ntuj 3 × 4m yog lub tsev pheeb suab siv nruab nrab, feem ntau yog siv los ua chaw nyob rau 2 lossis ntau tus neeg ua haujlwm, chav ua haujlwm hauv tsev, chaw ua haujlwm ib ntus thiab cov khoom siv saib xyuas chav ntawm qhov chaw tsim kho. Piv nrog rau 3 × 2m ib lub tsev pheeb suab tsev pheeb suab, qhov loj me no nce qhov chaw siv tau hauv tsev yam tsis muaj kev nthuav dav hauv pem teb, ua rau nws tsim nyog rau engineering tej yaam num uas yuav tsum tau siv mus sij hawm ntev.
Ntawm qhov chaw tsim kho txoj kev, kev ua haujlwm tsuas, kev tshawb nrhiav thaj chaw thiab kev tswj xyuas dej nyab & qhov chaw cawm thaum muaj xwm txheej ceev, lub tsev pheebsuab qauv no feem ntau yog teem rau hauv kab raws li tus qauv nyob lossis chav ua haujlwm rau kev tswj hwm hauv nruab nrab.
3 × 4m Kev Tsim Tsev Tsev Pheebsuab txais cov qauv tsim qauv tsim qauv, muaj peb qhov tseem ceeb: cov txheej txheem thav duab, tarpaulin system thiab hauv av sib txuas. Txhua qhov chaw muaj kev ua haujlwm meej, ua kom yooj yim installation thiab txij nkawm.

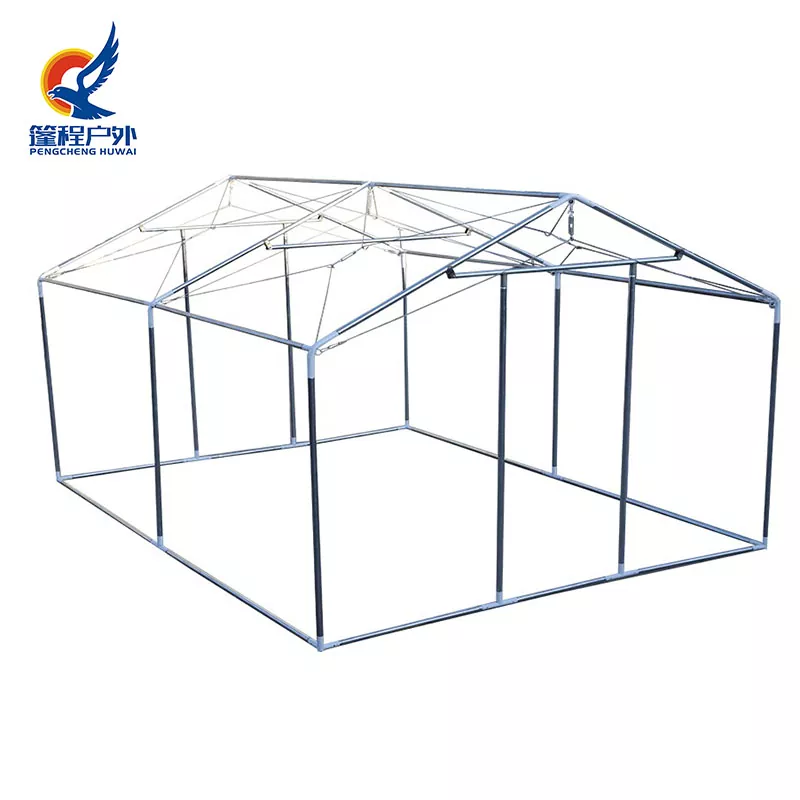

Kev them nyiaj yug loj: φ32 × 1.2mm galvanized steel kav
Connectors: φ32 × 1.2mm pleev xim rau tee thiab plaub-txoj kev txuas
Cov qauv hauv qab: Nruab nrog cov kab teeb hauv av txhawm rau txhim kho kev ruaj ntseg tag nrho
Cov qauv no tuav tswj qhov hnyav thaum ua tau raws li qhov yuav tsum tau ua rau cua tsis kam thiab deformation tsis kam nyob rau hauv qhov chaw tsim kho.
Ru tsev: 1 × 2 tuab roj hmab-yas composite ru tsev ntaub
Ntim: 420 coated Oxford daim ntaub
Thermal rwb thaiv tsev txheej: 400 filament paj rwb
Sab hauv hauv ob sab phlu: High-zoo ntsuab Oxford sab hauv hauv ob sab phlu
Multi-layer composite tsim sib npaug dej tsis sib haum, thermal rwb thaiv tsev thiab hnav-resistant kev ua tau zoo, ua rau nws tsim nyog rau kev siv sab nraum zoov mus ntev.
Tus qauv teeb tsa ntawm 3 × 4m Kev Tsim Tsev Tsev Pheebsuab suav nrog ib lub qhov rooj thiab plaub qhov rais. Lub qhov rais txais ib daim phiaj-patterned qauv nrog ywj siab sab hauv curtains, uas yuav pab nrog teeb pom kev zoo, qhov cua thiab tswj kev ceev ntiag tug.
|
Yam khoom |
Configuration Description |
|
Qhov rooj |
Ib lub qhov rooj qauv nrog cov ntaub thaiv qhov rooj ywj pheej |
|
Qhov rai |
Plaub daim phiaj-patterned qhov rais nrog kev ywj pheej curtains |
|
Ntaub ntaub |
Ib-thooj integrated enclosure ntaub |
|
Muaj peev xwm |
2-4 tus neeg (nyob ntawm kev teeb tsa sab hauv) |
Piv nrog rau cov tsev pheeb suab me me, cov qauv no muaj kev yooj yim dua rau kev tso txaj, lub thawv ntim khoom lossis cov rooj ua haujlwm yooj yim.
|
Cov ncauj lus kom ntxaws parameter piav qhia ntawm lub tsev pheebsuab siv tsev pheebsuab |
||||
|
Loj |
Npuag |
Bracket |
Configure |
Bracket hnyav |
|
3 * 2 (1 chav) |
1 * 2 tuab roj hmab yas sab saum toj 420 tapered oxford ntaub 400 floral silk paj rwb Zoo zoo ntsuab oxford hauv ob sab phlu |
Lub bracket yeeb nkab isφ32 * 1.2mm tuab galvanized steel yeeb nkab Lub tee thiab plaub-txoj kev yog φ32 * 1.2mn tuab pleev xim rau puag ncig Nrog Diliang |
Ib lub qhov rooj thiab ob lub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
85kg ua |
|
3 * 4 (2 chav) |
Ib lub qhov rooj thiab plaub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
123kg ua |
||
|
5 * 4 (2 chav) |
Ob lub qhov rooj thiab plaub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
131kg ua |
||
|
5 * 6 (3 chav) |
Ob lub qhov rooj thiab rau lub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
196kg ua |
||
|
5 * 8 (4 chav) |
Ob lub qhov rooj thiab yim qhov rais 2 daim ntaub + pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 41kg |
||
|
5 * 10 (5 chav) |
Ob lub qhov rooj thiab kaum qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 87kg |
||
|
Kev ua haujlwm, cov ntaub ntawv thiab cov khoom siv ntawm cov khoom no tuaj yeem ua raws li cov neeg siv khoom xav tau. |
||||
Tsim los rau kev tsim kho qhov chaw ib puag ncig, 3 × 4m Kev Tsim Tsev Tsev Pheebsuab muab kev ua haujlwm ruaj khov hla cov kev ntsuas tseem ceeb hauv qab no:
Cua tsis kam: ≥ Qib 8
Waterproof ntsuas: ≥3000mm
Kev khiav hauj lwm kub: -30 ℃ to + 50 ℃
Kev ua tau zoo hluav taws kub: Cov txheej rwb thaiv tsev ua tau raws li Class B1 nplaim hluav taws-retardant tus qauv
Qhov kev sib xyaw ua ke no ua rau lub tsev pheeb suab siv tsis tu ncua hauv thaj chaw alpine, cov cheeb tsam yav qab teb los nag lossis cov chaw tsim kho nrog qhov sib txawv ntawm nruab hnub hmo ntuj.
Lub tsev pheebsuab nta cov qauv tsim qauv thiab tuaj yeem muab tshem tawm thiab ntim rau kev thauj mus los ntawm tsheb lossis thawv.
Raws li ib txwm muaj, nws tuaj yeem tsim tsa los ntawm 4 tus neeg nyob rau hauv kwv yees li 30 feeb yam tsis tas yuav tsum muaj cov cuab yeej siv tshuab loj, ua rau nws zoo tagnrho rau cov haujlwm ua haujlwm txawb uas yuav tsum tau tsiv chaw nyob.
Tag nrho 3 × 4m Kev Tsim Tsev Tsev Pheebsuab yog tsim nyob rau hauv peb cov chaw tsim khoom hauv Suav teb, ua raws li ISO9001 kev tswj xyuas zoo:
Hlau yeeb nkab ua: High-frequency vuam + kub-dip galvanizing
Tarpaulin txiav: Computerized tsis siv neeg txiav tshuab
Kev tshuaj xyuas cov khoom tiav: Cov qauv kev ruaj ntseg kuaj, cua thiab nag simulation kuaj, kev tshuaj xyuas los ua ke
Random sampling kev soj ntsuam yog ua nyob rau hauv txhua batch ntawm cov khoom ua ntej xa khoom kom paub meej tias cov qauv thiab cov ntaub ntawv raws li tus qauv tsim.
Customizable qhov ntev, ntaub thickness thiab thermal rwb thaiv tsev qib
Adjustable tus naj npawb ntawm lub qhov rooj / qhov rais thiab sab hauv haumxeeb configurations
Raws li ib qho ntawm cov kev qhia tshwj xeeb hauv engineering engineering, 3 × 4m Kev Tsim Tsev Tsev Pheebsuab feem ntau yog siv los ua ke nrog cov tsev pheeb suab ntawm lwm qhov ntau thiab tsawg los tsim kom tiav qhov chaw nyob.
