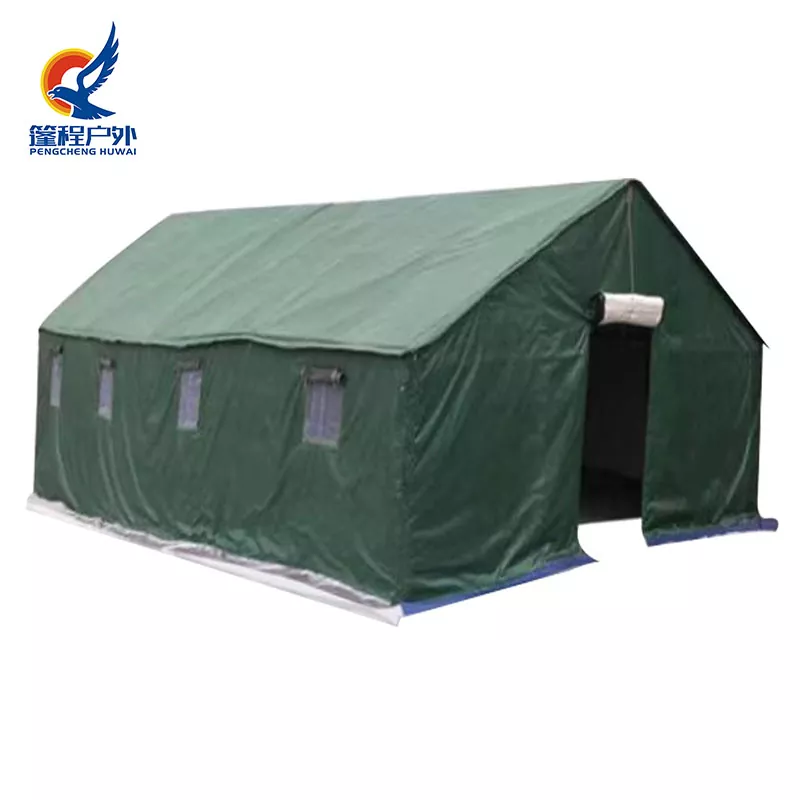

Lub 4.5 × 10m Kev Tsim Tsev Tsev Pheebsuab txais qhov sib txawv lengthwise txuas ntxiv, muab txuas ntxiv, faib tau qhov chaw sab hauv yam tsis muaj qhov nce ntxiv. Qhov kev tsim qauv proportional no zoo dua rau kev tsim kho camps uas yuav tsum tau ua kom pom tseeb zoning thiab ruaj khov khiav, xws li centralized multi-tus neeg chaw nyob, nyob rau ntawm qhov chaw cov lus txib thiab kev sib koom ua ke, lossis cov ntsiab lus tswj xyuas ib ntus rau cov ntaub ntawv loj.
Hauv kev npaj mus pw hav zoov, qhov kev qhia tshwj xeeb no feem ntau ua haujlwm raws li lub hauv paus zoo li lub hauv paus, txo cov kev tswj xyuas nyuaj tshwm sim los ntawm kev sib txuas ntau lub tsev pheeb suab me me hauv series.
Los ntawm daim ntawv thov engineering foundations, lub tsev pheebsuab qauv no muaj peev xwm load-bearing siab thiab siv siv:
· Ua tau raws li qhov xav tau kev pab mus sij hawm ntev ntawm ntau tus neeg
· Tsim nyog rau cov neeg ua haujlwm ntau zaus nkag mus thiab ua haujlwm raws li kev hloov pauv
· Internal qhov chaw txhawb segmented layout ntawm txaj, chaw ua hauj lwm cheeb tsam thiab passages
Piv nrog rau luv luv, cov tsev pheeb suab loj loj, cov qauv no yooj yim dua los tswj thiab tswj thaum siv mus ntev.
4.5 × 10m Kev Tsim Tsev Tsev Pheebsuab txais kev txhawb nqa kev sib dhos hauv nws cov qauv tsim kom haum rau kuj ntev ntev ntawm lub tsev pheeb suab ntaub:
· Main Ncej: φ32 × 1.2mm galvanized steel kav
· Connectors: Painted tee thiab plaub-txoj kev connectors
· Hauv qab System: Nruam hauv av kab teeb qauv kom tawg mus ntev
Multi-node kev txhawb nqa txo cov kev ntxhov siab hauv zos thiab txhim kho kev ruaj ntseg tag nrho.
|
Cov ncauj lus kom ntxaws parameter piav qhia ntawm lub tsev pheebsuab siv tsev pheebsuab |
||||
|
Loj |
Npuag |
Bracket |
Configure |
Bracket hnyav |
|
3 * 2 (1 chav) |
1 * 2 tuab roj hmab yas sab saum toj 420 tapered oxford ntaub 400 floral silk paj rwb Zoo zoo ntsuab oxford hauv ob sab phlu |
Lub bracket yeeb nkab isφ32 * 1.2mm tuab galvanized steel yeeb nkab Lub tee thiab plaub-txoj kev yog φ32 * 1.2mn tuab pleev xim rau puag ncig Nrog Diliang |
Ib lub qhov rooj thiab ob lub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
85kg ua |
|
3 * 4 (2 chav) |
Ib lub qhov rooj thiab plaub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
123kg ua |
||
|
5 * 4 (2 chav) |
Ob lub qhov rooj thiab plaub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
131kg ua |
||
|
5 * 6 (3 chav) |
Ob lub qhov rooj thiab rau lub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
196kg ua |
||
|
5 * 8 (4 chav) |
Ob lub qhov rooj thiab yim qhov rais 2 daim ntaub + pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 41kg |
||
|
5 * 10 (5 chav) |
Ob lub qhov rooj thiab kaum qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 87kg |
||
|
Kev ua haujlwm, cov ntaub ntawv thiab cov khoom siv ntawm cov khoom no tuaj yeem ua raws li cov neeg siv khoom xav tau. |
||||
Cov qauv tsev pheebsuab no tswj hwm ib puag ncig kev hloov pauv nrog cov qauv loj:
|
Yam khoom |
Qhov taw qhia |
|
Cua Resistance |
≥ Qib 8 |
|
Waterproof Rating |
≥3000mm |
|
Kev khiav hauj lwm qhov kub thiab txias |
-30 ℃ to + 50 ℃ |
|
Nplaim-Retardant Rating |
Chav Kawm B1 (thermal rwb thaiv tsev txheej) |
Multi-layer composite tarpaulin qauv kom ruaj khov kev ua tau zoo nyob rau hauv rainy, windy, low-temperature los yog muaj zog hnub ci ib puag ncig.
Rau cov haujlwm nyob rau lub sijhawm ntev, 4.5 × 10m Kev Tsim Tsev Tsev Pheebsuab muaj cov yam ntxwv hauv qab no nyob rau hauv cov nqe lus ntawm kev ua haujlwm thiab kev saib xyuas:
· Cov tarpaulin, txheej rwb thaiv tsev thiab cov qauv hlau tuaj yeem hloov ntawm nws tus kheej
· Galvanized steel kav txo cov kev pheej hmoo corrosion
· Modular tsim pab txhawb kev hloov pauv thiab hloov chaw
Hauv cov chaw ruaj khov, kev nyab xeeb tuaj yeem txhim kho ntxiv los ntawm kev siv cov av thauj tog rau nkoj, counterweights lossis foundation fixation method.
Cov khoom no yog tsim nyob rau hauv peb cov chaw tsim khoom hauv Suav teb, nruj me ntsis ua raws li ISO9001 zoo tswj system, npog tag nrho cov txheej txheem ntau lawm nrog rau steel yeeb nkab ua, tarpaulin compounding thiab Kev tshuaj xyuas cov khoom tiav.
Peb txhawb:
· Cov khoom siv ntau
· Customization ntawm qhov ntev, teeb tsa thiab cov ntaub ntawv
· Pab txhawb rau kev tsim vaj tsev loj thiab cov haujlwm txawv teb chaws
4.5 × 10m Kev Tsim Tsev Tsev Pheebsuab yog tsim rau kev suav nrog hauv cov qauv kev teeb tsa ntawm cov chaw ua haujlwm engineering, rau mus sij hawm ntev, centralized daim ntawv thov scenarios.
