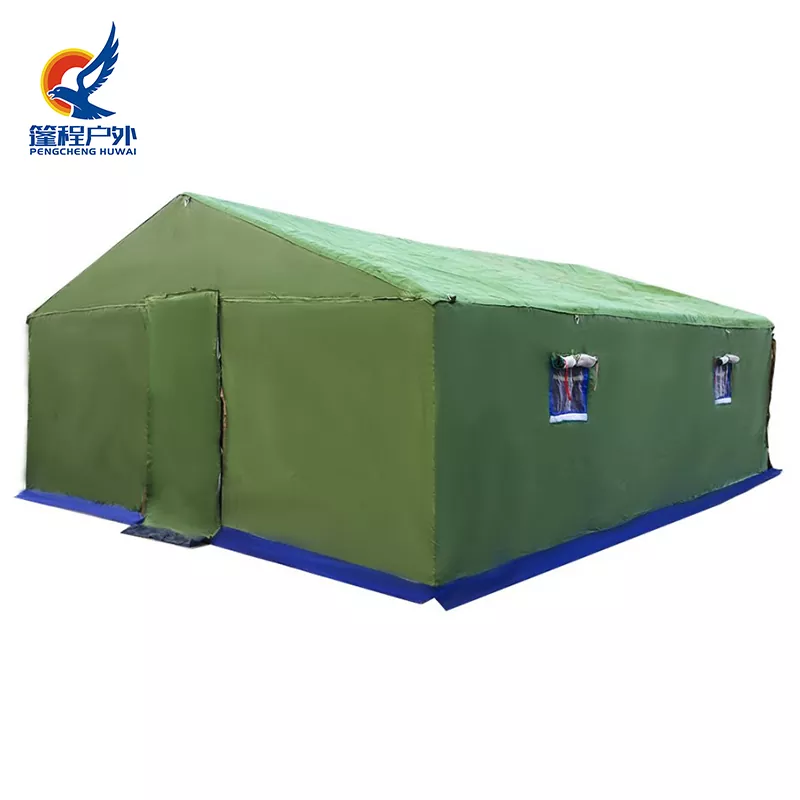

Lub 4.5 × 5.5m Kev Tsim Tsev Tsev Pheebsuab muaj qhov siv tau sab hauv thaj tsam ntawm kwv yees li 24.75 square metres. Tsis poob rau hauv qeb ntawm cov tsev pheeb suab loj ntxiv, nws muab qhov chaw siv tau zoo. Qhov loj me no feem ntau siv rau kev pab ntau tus neeg, chaw ua haujlwm ib ntus lossis cov khoom siv hauv nruab nrab cia hauv engineering tej yaam num, tawm tsam a sib npaug ntawm qhov chaw ua haujlwm hauv pem teb, tus nqi thiab kev ua haujlwm.
Piv nrog rau tus qauv 4 × 5m, lub tsev pheeb suab no tso cai rau kev nkag mus rau sab hauv thiab ua haujlwm zoning.
Los ntawm qhov kev pom ntawm daim ntawv thov hauv qhov chaw, 4.5 × 5.5m Kev Tsim Tsev Tsev Pheebsuab zoo dua rau cov haujlwm nruab nrab. nrog rau lub sij hawm tsim kho kuj ruaj khov:
· Muaj peev xwm haum 4-6 tus neeg rau qhov chaw nyob
· Zoo tagnrho rau kev teeb tsa chaw ua haujlwm yooj yim thiab chaw so
· Tsim nyog rau kev xa mus rau qhov chaw ruaj khov lossis ib nrab
Qhov kev qhia tshwj xeeb no txo qhov kev xav tau ntawm kev hloov kho tsev pheeb suab ntau zaus, pab txhim kho kev tswj hwm ntawm qhov chaw efficiency.
Lub tsev pheeb suab tau txais kev sib koom ua ke txheej txheem steel qauv, nrog kev sib koom tes nruj ntawm cov khoom mus rau yooj yim installation thiab txij nkawm.
· Main Ncej: φ32 × 1.2mm galvanized steel kav
· Connection Method: Painted tee thiab plaub-txoj kev connectors
· Cov Kev Pabcuam Hauv Qab: Cov kab teeb hauv av los txhim kho cua tsis kam thiab tiv thaiv kev tawm mus
Los ntawm kev sib haum xeeb ntawm cov khoom, lub tsev pheeb suab tswj kev ruaj ntseg zoo txawm tias nws nthuav dav cheeb tsam.
Lub 4.5 × 5.5m Kev Tsim Tsev Tsev Pheebsuab nta tib yam khoom siv thiab ntsuas kev ua tau zoo raws li qhov loj me qauv, ua rau nws haum rau ntau yam kev tsim kho ib puag ncig.
|
Yam khoom ua haujlwm |
Qhov taw qhia |
|
Cua Resistance |
≥ Qib 8 |
|
Waterproof Rating |
≥3000mm |
|
Kev khiav hauj lwm qhov kub thiab txias |
-30 ℃ to + 50 ℃ |
|
Nplaim-Retardant Rating |
Chav Kawm B1 (thermal rwb thaiv tsev txheej) |
Cov txheej txheem ntau txheej tarpaulin ua tiav qhov sib npaug ntawm cov dej tsis zoo, thermal rwb thaiv tsev thiab hnav tsis kam, ua rau nws tsim nyog rau kev siv sab nraum zoov mus ntev.
|
Cov ncauj lus kom ntxaws parameter piav qhia ntawm lub tsev pheebsuab siv tsev pheebsuab |
||||
|
Loj |
Npuag |
Bracket |
Configure |
Bracket hnyav |
|
3 * 2 (1 chav) |
1 * 2 tuab roj hmab yas sab saum toj 420 tapered oxford ntaub 400 floral silk paj rwb Zoo zoo ntsuab oxford hauv ob sab phlu |
Lub bracket yeeb nkab isφ32 * 1.2mm tuab galvanized steel yeeb nkab Lub tee thiab plaub-txoj kev yog φ32 * 1.2mn tuab pleev xim rau puag ncig Nrog Diliang |
Ib lub qhov rooj thiab ob lub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
85kg ua |
|
3 * 4 (2 chav) |
Ib lub qhov rooj thiab plaub qhov rais 1 daim ntaub + 1 daim ntaub thaiv qhov rooj Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
123kg ua |
||
|
5 * 4 (2 chav) |
Ob lub qhov rooj thiab plaub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
131kg ua |
||
|
5 * 6 (3 chav) |
Ob lub qhov rooj thiab rau lub qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
196kg ua |
||
|
5 * 8 (4 chav) |
Ob lub qhov rooj thiab yim qhov rais 2 daim ntaub + pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 41kg |
||
|
5 * 10 (5 chav) |
Ob lub qhov rooj thiab kaum qhov rais 2 daim ntaub * pem hauv ntej thiab nram qab qhov rooj curtains Lub qhov rais yog ua los ntawm cuaj-square grid thiab muaj cov ntaub thaiv sab nraud. |
2 87kg |
||
|
Kev ua haujlwm, cov ntaub ntawv thiab cov khoom siv ntawm cov khoom no tuaj yeem ua raws li cov neeg siv khoom xav tau. |
||||
Lub tsev pheeb suab no txhawb nqa kev tsim kho, uas tuaj yeem ua tiav los ntawm 4 tus neeg nyob rau hauv kwv yees li 30 feeb.
Hauv qhov chaw tsim kho tiag tiag, nws txoj kev ruaj ntseg tuaj yeem txhim kho ntxiv los ntawm kev siv cov anchors hauv av, sandbags lossis foundation counterweights.
Cov tarpaulin, steel qauv thiab cov khoom siv tag nrho txais cov qauv tsim, ua kom cov nqi tswj tau tom qab kho thiab hloov.
4.5 × 5.5m Kev Tsim Tsev Tsev Pheebsuab txhawb nqa ntau qhov chaw thiab tuaj yeem kho raws li qhov yuav tsum tau ua, suav nrog qhov loj me me, qhov rooj thiab qhov rais configuration thiab hloov khoom siv.
Nyob rau hauv kev tsim kho camp configuration cov phiaj xwm, qhov kev qhia tshwj xeeb no feem ntau ua haujlwm raws li ib qho ntawm cov qauv tseem ceeb, thiab tsim nyog rau kev sib txuas nrog cov tsev pheeb suab me me thiab cov tsev pheeb suab loj los ua kom tiav qhov project camp.
