Emergency Relief Table and Chair Set

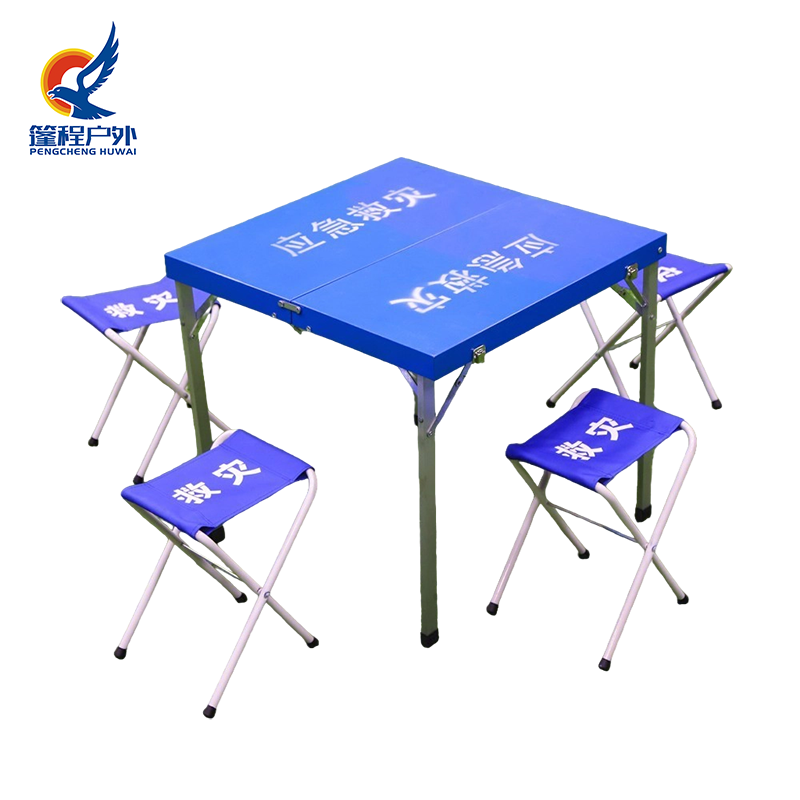

Pengcheng Sab nraum zoov lub rooj sib tham thaum muaj xwm ceev thiab lub rooj zaum muaj ib lub rooj thiab plaub lub quav. Ob qho tib si kev puas tsuaj folding rooj thiab cov rooj zaum yog foldable. Muab faib los ntawm cov ntaub ntawv cov ntaub ntawv, muaj ob hom: hlau folding rooj thiab yas folding rooj. Lub rooj zaum ntawm lub rooj hlau folding yog sib sau ua ke los ntawm ob qho tib si symmetrical stamped los ntawm cov ntawv txias-dov steel, ua ib qho kev sib koom ua ke qhib thiab kaw. Lub rooj ob txhais ceg txuas nrog lub rooj zaum siv aluminium alloy square tubes, nrog hinges ua rau ob txhais ceg kom quav. Lub rooj zaum saum npoo ntawm cov quav quav yog ua los ntawm PVC-coated ntaub, thiab ob txhais ceg yog tsim los ntawm dabtsi yog khoov welded steel kav. Thaum folded, plaub lub quav tuaj yeem khaws cia rau hauv lub rooj, uas tom qab ntawd kaw los ua ib qho kev sib koom ua ke ntawm tes.

Khoom Parameter (Specifications)

Cov kev txwv ntawm Pengcheng Sab Nraum Sab Nraud Lub Rooj Sib Tham Thaum Muaj Xwm Ceev thiab Lub Rooj Zaum Rooj Zaum yog raws li hauv qab no:

1. Cov khoom sib xyaw

1 teeb suav nrog 1 lub rooj folding + 4 folding quav

2. Folding Table Parameters

Khoom siv: Cold-rolled steel ntawv / engineering yas (yeem)

Qhov Loj: 1200 × 600 × 750mm (L × W × H)

Folded Dimensions: 600 × 400 × 120mm

Tabletop Thickness: 1.2mm steel ntawv / 15mm yas ntawv

Table Leg Khoom: 25 × 25 × 1.2mm aluminium alloy square raj

Txoj kev sib txuas: Stainless hlau hinges

Load-bearing peev: ≥80kg

3. Folding quav Parameters

Lub Rooj Nto Khoom: 600D PVC-coated Oxford daim ntaub

Stool Leg Khoom: Φ19 × 1.0mm welded steel yeeb nkab

Unfolded Dimensions: 300 × 250 × 450mm

Ib leeg quav Load-bearing Capacity: ≥100kg

Seat Surface Treatment: Waterproof thiab mildew-proof txheej

4. Tag nrho cov nta

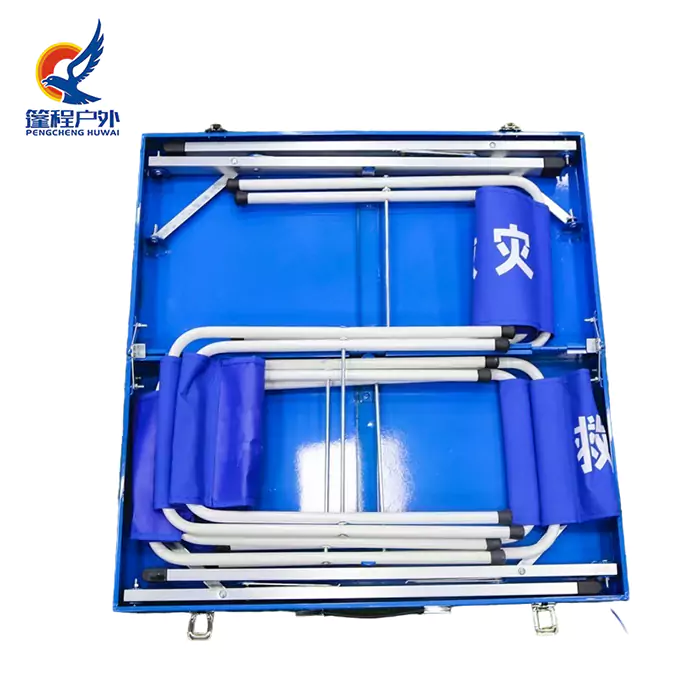

Txoj Kev Cia: 4 cov quav tso rau hauv lub rooj

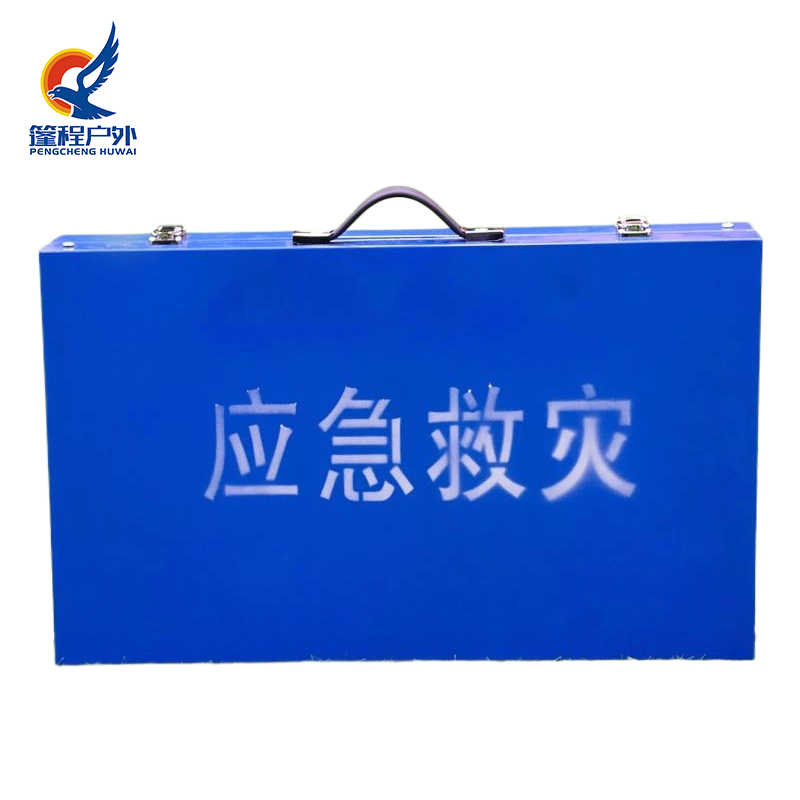

Ntim: Integrated hand-carry case design

Qhov hnyav tag nrho: 12.5kg (hlau version) / 9.8kg (yas version) Unfolding Sijhawm: ＜2 feeb Cov qauv ntawv pov thawj: Ua raws li cov qauv CE / GB

Los ntawm cov qauv tsim qauv thiab cov qauv tsim, cov khoom lag luam ua tiav kev xa khoom sai thiab kev cia yooj yim, ua tau raws li qhov xav tau siv tam sim ntawd thaum muaj xwm txheej ceev.

Khoom nta & kev siv

Lub rooj thiab lub rooj zaum thaum muaj xwm ceev no tsim nyog rau cov xwm txheej xws li kev hais kom pab daws teebmeem, kev ua haujlwm ib ntus, thiab kev ua haujlwm sab nraum zoov. Nrog lub tswv yim tsim tshiab thiab txhim khu kev qha Made-in-China zoo, nws muab cov tswv yim daws teeb meem rau ntau yam kev pab cuam thaum muaj xwm ceev.

Paub meej ntau lawm

Raws li cov kws tshaj lij Suav chaw tsim khoom, Pengcheng Sab Nraud siv cov txheej txheem tsim khoom hauv nws tus kheej cov chaw tsim khoom hauv Suav teb kom ntseeg tau tias kev tswj xyuas zoo thiab cov khoom sib xws ntawm lub rooj zaum thiab lub rooj zaum thaum muaj xwm ceev.

1. Cov txheej txheem ntau lawm ntawm Hlau Folding Rooj

Tabletop Manufacturing: Cold-dov hlau los xij yog txiav los ntawm CNC laser txiav tshuab, ces stamped rau hauv symmetrical Cheebtsam nyob rau hauv ib tug pass siv ib tug 200-tuj hydraulic xovxwm. Lub stamping tuag precision ncav cuag ± 0.1 hli, thiab cov npoo tau ua tiav nrog cov tshuab curling kom muaj kev nyab xeeb.

Kev Kho Hniav: Cov khoom siv hauv cov ntsiav tshuaj tau dhau cuaj txoj kev kho mob ua ntej ua ntej nkag mus rau cov hmoov txheej tsis siv neeg. Epoxy-polyester hmoov yog kho nyob rau hauv lub qhov cub 200 ℃ los ua 80μm-thick tiv thaiv txheej.

Table Leg Processing: Ob txhais ceg raug khoov los ntawm CNC yeeb nkab dabtsi yog khoov tshuab, thiab cov khoom sib txuas yog milled los ntawm tsib-axis machining chaw los xyuas kom meej haum. Lub folding mechanism txais kev sib xyaw ua ke ntawm 304 stainless hlau mandrels thiab nylon bearings.

2. Cov txheej txheem tsim cov yas folding rooj

Txhaj Moulding: Engineering yas pellets yog melted ntawm 280 ℃ thiab txhaj rau hauv precision pwm, ces tuav nyob rau hauv siab thiab txias los tsim lub ntsiab tabletop lub cev. Cov pwm kub tswj qhov system ua kom cov khoom seem ruaj khov.

Structural Reinforcement: Sab hauv ntawm lub rooj zaum yog tsim los nrog lub mesh-zoo li tus ncej reinforcing rib qauv, thiab hlau embedded qhov chaw yog ntsia ntawm qhov tseem ceeb load-bearing txoj hauj lwm, uas yog fused nrog yas lub cev los ntawm ultrasonic vuam.

3. Cov txheej txheem ntau lawm ntawm cov quav quav

Stool Frame Manufacturing: Welded steel kav yog straightened thiab ces xa mus rau lub siab tsis siv neeg yeeb nkab dabtsi yog khoov ntau lawm kab, nrog dabtsi yog khoov cov ces kaum saib nyob rau hauv lub sij hawm ntawm photoelectric sensors. Cov ntsiab lus vuam txais yuav CO₂ shielded vuam tshuab, nrog vuam lub zog ncav cuag ntau tshaj 95% ntawm lub hauv paus hlau.

Seat Surface Processing: 600D Oxford daim ntaub yog raug txiav los ntawm lub computer tswj cov cav tov, sewn nrog industrial-qib ob-koob tshuab xaws ntawm ib tug stitch ceev ntawm 8 stitches ib centimeter. PVC txheej yog compounded nrog cov ntaub nyob rau hauv 180 ℃ kub-nias tej yam kev mob.

Los ntawm kev sib xyaw ua ke ntawm cov txheej txheem ntau lawm, Pengcheng Sab Nraud optimizes cov nqi thaum ua kom cov khoom lag luam zoo, muab cov neeg siv khoom nrog cov nqi tsim nyog Made-in-China cov khoom thiab txhawb nqa sai rau kev txiav txim ntau.
