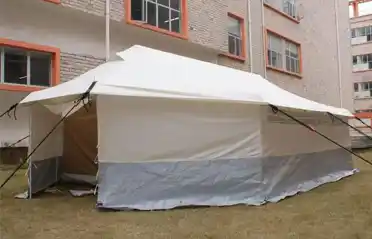

Pengcheng Sab Nraum Lub Tsev 12㎡ Kev Pabcuam Thaum Muaj Xwm Ceev yog feem ntau muab faib ua ob hom: 12㎡ Ib Lub Tsev Kho Mob Kub Ceev (National Standard / Non-Standard) thiab 12㎡ Paj Rwb Thaum Muaj Xwm Ceev (National Standard / Non-Standard). Nrog qhov ntev ntawm 3.2m (dav) × 3.7m (ntev) × 1.75m (eave qhov siab) × 2.67m (nce siab), tag nrho cov tsev pheebsuab txais cov qib high-qib waterproof thiab nplaim taws-retardant ntaub nrog reinforced steel lug, nce durability los ntawm 50%. Featuring tus qauv tsim qauv, lawv yooj yim los tswj thiab sib sau ua ke sai.
|
Loj |
Dav 3.2m * Ntev 3.7 * Sab qhov siab 1.75m * Sab saum toj siab 2.67m |
||||
|
Hom |
TARP cov ntaub ntawv thiab paj rwb zais zis khoom |
Kev teeb tsa |
Stent |
Luj ntawm tsev pheeb suab |
Qhov hnyav ntawm lub bracket |
|
National standard |
Tarpaulin: 666dtex X 666dtex PVC ib sab coated polyester yarn Paj rwb gallbladder: 400g dawb silk paj rwb Cov ntaub hauv qab: 555dtex × 555dtex Ob chav sided coated polyester yarn |

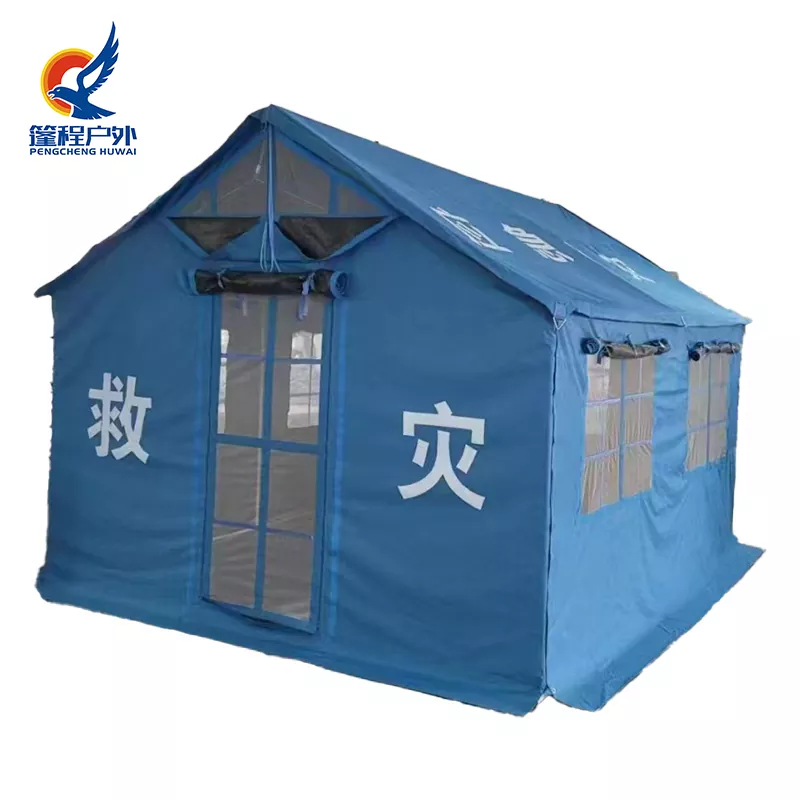

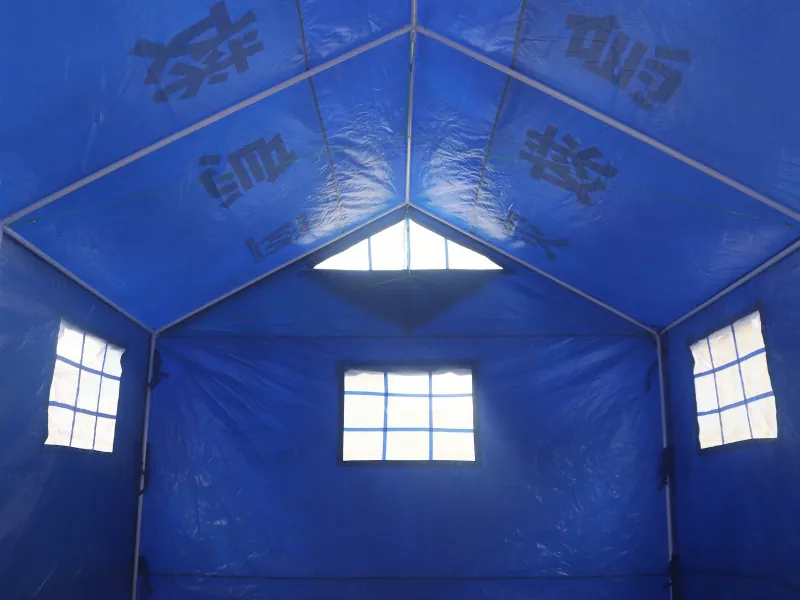

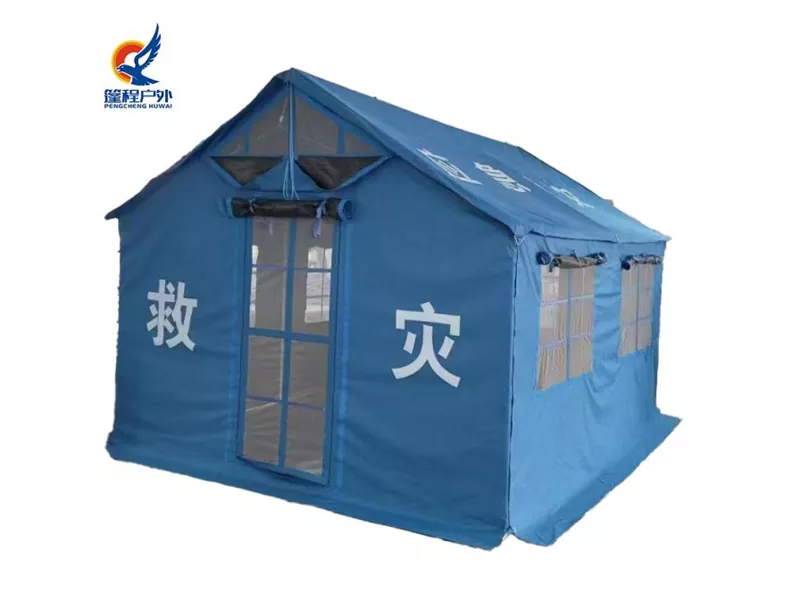

Ib lub qhov rooj nrog plaub qhov rais (600mm * 800mm) Pem hauv ntej thiab nram qab nrog chimney qhib Printing rau ob sab ntawm lub canopy: Emergency Relief Luam tawm ntawm qhov nkag: Kev daws teeb meem |

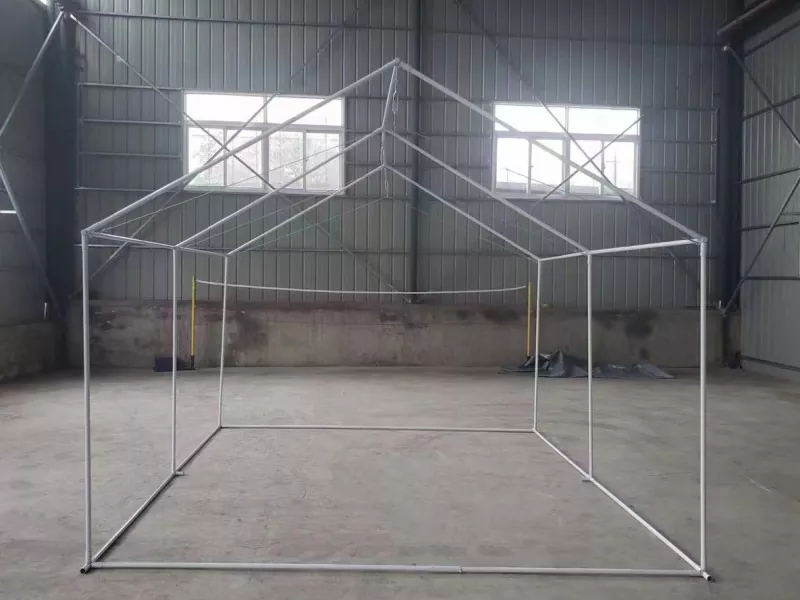

Universal ncej: 25mm * 1.2mm (18 pieces) Loj: 25mm * 1.2mm (6pcs) Hauv pem teb crossbar: 25mm * 1.2mm (2 pieces) Peb txoj kev accessories: φ28mm * 1.0mm (6 pieces) Plaub txoj kev accessories: 3 daim nrog ib txoj kab uas hla ntawm 28mm * 1.0mm Cov khoom siv hauv av: 6 daim nrog txoj kab uas hla ntawm 28mm * 1.0mm Cov ntsia hlau hauv av: 8 pieces Tag nrho cov bracket txais cov xim txau tshuab |
Lub cev hnyav: 36 kg Paj Rwb: 28kg (± 0.5kg) |
44.5kg ± 0.5kg |
|
Tsis yog tus qauv |
600D PVC tuab Coated Oxford daim ntaub nrog nplaum Paj rwb gallbladder: 400g dawb silk paj rwb Cov ntaub hauv qab: PE ntaub |
± 0.5 hli Lub cev hnyav: 28kg Paj Rwb: 26kg ± 0.5 hli |
38kg ± 0.5kg |
||
|
600D zoo tib yam xiav PVC Coated Oxford daim ntaub nrog nplaum Paj rwb gallbladder: 300g dawb silk paj rwb Cov ntaub hauv qab: PE ntaub |
± 0.5 hli Qhov hnyav: 25 kg Paj Rwb: 22kg ± 0.5 hli |
38kg ± 0.5kg 30kg ± 0.5kg |
|||
|

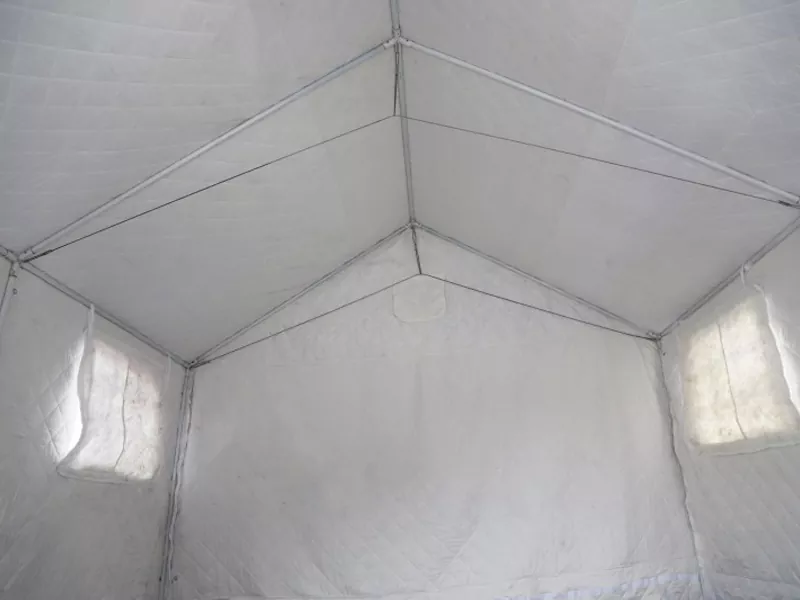

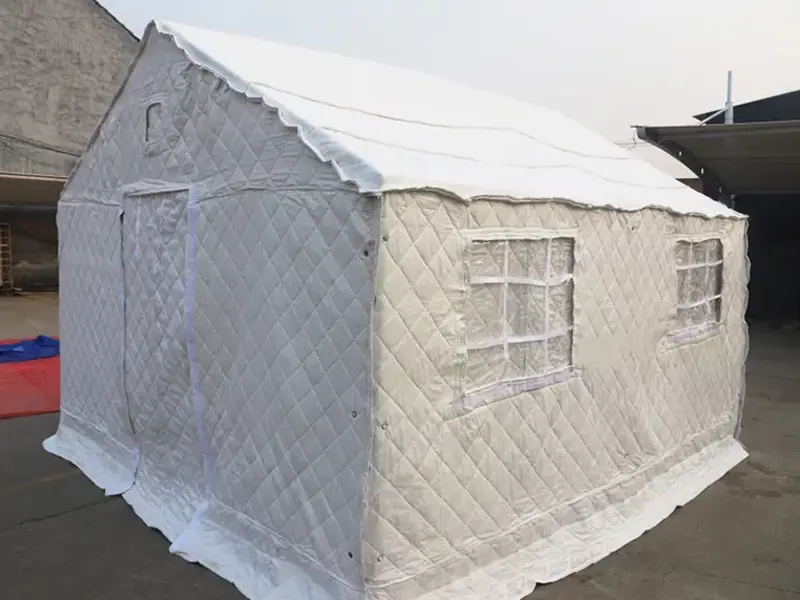

600D zoo tib yam xiav PVC Coated Oxford daim ntaub nrog nplaum Paj rwb txheej: 240g dawb silk paj rwb Integrated paj rwb txoj kev |

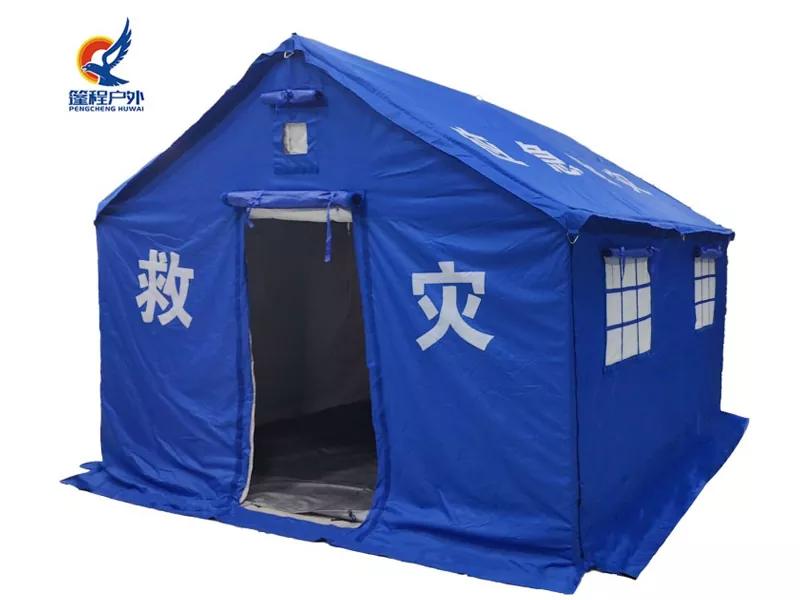

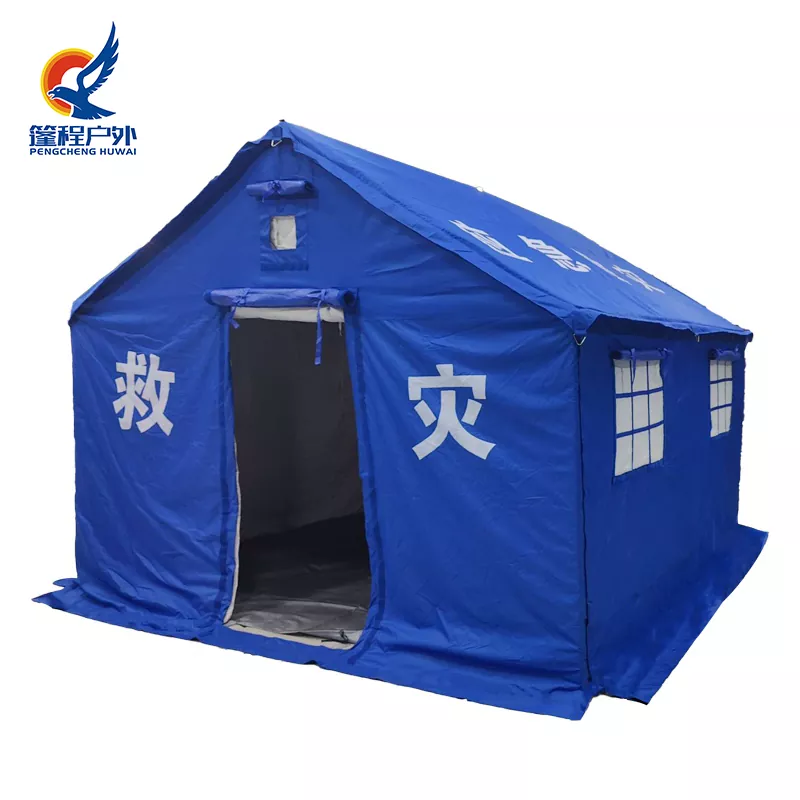

Ib lub qhov rooj nrog plaub qhov rais (600mm * 800mm) Pem hauv ntej roob chimney qhov ncauj Printing rau ob sab ntawm lub canopy: Emergency Relief Luam tawm ntawm qhov nkag: Kev daws teeb meem |
28kg ± 0.5kg |
30.5kg ± 0.5kg |
||
|
National standard |
333dtex × 333dtex polyester yarn Coated Oxford daim ntaub nrog nplaum Paj rwb txheej: 300g dawb silk paj rwb Cov ntaub hauv qab: PE ntaub |
Ib lub qhov rooj nrog plaub qhov rais (600mm * 800mm) Pem hauv ntej thiab nram qab nrog chimney qhib Printing rau ob sab ntawm lub canopy: Emergency Relief Luam tawm ntawm qhov nkag: Kev daws teeb meem Sau rau pem hauv ntej thiab nram qab lub roob peaks: Tuam Tshoj Nqa lub teb chaws chij |
Universal ncej: 25mm * 1.8mm (18 pieces) Loj: 25mm * 1.8mm (6pcs) Hauv av crossbars: 2 daim ntawm 25mm * 1.8mm inch Peb txoj kev accessories: φ28mm * 1.0mm (6 pieces) Plaub txoj kev accessories: 3 daim nrog ib txoj kab uas hla ntawm 28mm * 1.0mm Cov khoom siv hauv av: 6 daim nrog txoj kab uas hla ntawm 28mm * 1.0mm Cov ntsia hlau hauv av: 8 pieces Aluminium alloy bracket |
Qhov hnyav tag nrho: 60kg ± 0.5kg |
|
|
Tsis yog tus qauv |
300D Blue PU tawv Coated Oxford daim ntaub nrog nplaum (Tsis yog nplaim retardant) Paj rwb txheej: 300g dawb silk paj rwb Cov ntaub hauv qab: PE ntaub |
||||
|
Cov saum toj no yog cov tsis muaj 12㎡ paj rwb tsev pheeb suab rau niaj hnub kev cawm thaum muaj xwm ceev. Lub bracket, ntaub, thiab kev ua haujlwm tuaj yeem ua raws li cov neeg siv khoom xav tau. |
|||||
Raws li cov kws tshaj lij Suav lub tsev kho mob thaum muaj xwm txheej ceev, Pengcheng Sab nraum zoov lub 12㎡ Kev Tiv Thaiv Kev Kub Ntxhov Thaum Muaj Xwm Ceev tau txais lub zog muaj zog tsis muaj dej tsis zoo thiab nplaim hluav taws-retardant ntaub nrog cov khoom siv hlau, ua kom muaj zog ntawm 50% thiab tiv taus qib 8 gales. Cov qauv tsim qauv ua kom yooj yim sib dhos thiab kho yooj yim. Nruab nrog lub qhov rais qhov cua thiab cov cim xwm txheej ceev, nws ua tau raws li qhov xav tau ntawm ntau qhov xwm txheej xws li cov chaw hais kom ua, chaw kho mob, thiab chaw nyob thaum muaj xwm ceev.Production Details1. Core Specifications and Performance of 12㎡ Emergency Disaster Relief Tents · Space and Structure: Standard rectangular double-slope vertical wall structure with dimensions 3.7m (ntev) × 3.2m (dav) × 2.67m (nce siab) × 1.75m (eave height), npog thaj tsam ntawm 12 tus neeg ib ntus. Lub thav duab nta lub plug-in tsim nrog hauv av crossbars kom muaj kev nyab xeeb nyob rau hauv cov cua muaj zog.
Npuag: Feem ntau 300D / 600D PVC-coated daim ntaub los yog cov ntaub ntawv zoo sib xws, featuring tensile lub zog, kua muag kuj, aging kuj, thiab rainproof kev ua tau zoo.
Stent: Cov ncej tseem ceeb (piv txwv li, universal ncej, uprights) yog ua los ntawm welded steel kav nrog ib txoj kab uas hla ntawm kwv yees li 25 hli.
Kev sib dhos thiab Kev Kho: Tsim kom yooj yim-2 tus neeg tuaj yeem ua tiav kev sib dhos hauv li 15 feeb. Kev saib xyuas yog yooj yim, feem ntau yog ua kom lub tsev pheeb suab kom huv si, tshawb xyuas cov dej sawv tom qab los nag, thiab ziab kom raws sijhawm.
Raws li Tuam Tshoj lub tsev kho mob thaum muaj xwm txheej ceev, Pengcheng Sab nraum zoov muaj peev xwm ntau lawm thiab khoom siv.
Kev Tsim Nyog thiab Cov Khoom Siv: Nruab nrog ntau yam ntawm cov cuab yeej tshaj lij kev tsim khoom, suav nrog cov tshuab vuam tshuab, cov lej loj tswj cov tshuab quilting, thiab cov lej tswj kub-kua tshuab. Nrog nws lub hauv paus chaw ua haujlwm hauv Tangshan thiab plaub ceg hauv Xi'an, Yishui, Yongqing, thiab Shenyang, peb tau tsim lub network ua haujlwm npog Shaanxi, Shandong, Hebei, Liaoning, thiab lwm lub xeev, kom ruaj khov thiab muab khoom.
Daim ntawv pov thawj: Peb cov khoom tau yeej qhov kev sib tw rau ntau lub tseem fwv cov khoom siv kev puas tsuaj rau kev yuav khoom, ua raws li cov qauv hauv lub tebchaws lossis kev lag luam (xws li, MZ / T 011 series qauv).
